2D Laplacian

As a simple example, let's solve \(-\nabla \cdot \nabla u\) on a square domain, with \(u=0\) on the left and \(u=1\) on the right. Just a simple Laplacian problem.

(TLDR: If you just want to skip ahead and run it... check out the problems/simple_diffusion directory for a pre-baked script that solves this problem)

To solve this problem we're going to need to:

1. Start using MOOSE
2. Create the Geometry
3. Create a System
4. Add Variables to the System
5. Add Kernels representing our PDE operators acting on our Variables to the System
6. Add some BoundaryCondition objects for the left and right boundary
7. Create a Solver
8. Write out the output using VTKOutput
9. Visualize using Paraview: http://www.paraview.org

Let's get started. Fire up a Julia terminal and follow along:

Start Using MOOSE

First, we're going to need to use MOOSE:

using MOOSE

The Geometry

Currently, MOOSE.jl only has a simple built-in mesh generator. Luckily for us, it builds rectangular, 2D domains!

The command is: buildSquare(x_min, x_max, y_min, y_max, n_elems_x, n_elems_y)

Let's build a 10x10 grid on the (0,1)x(0,1) unit square:

mesh = buildSquare(0, 1, 0, 1, 10, 10);

Create the System

The System holds all of the information about the equations to be solved and geometry. It must be initialized with a Mesh

The only real choice when creating a System is what type to use for the underlying floating point type. The parametric type you use is either Float64 or Dual{N, Float64}. The choice is dependent on whether you want your Jacobian matrices built from manually coded functions (for Float64) or whether you want to use automatic differentiation (Dual).

For now, let's use manually coded Jacobian functions:

diffusion_system = System{Float64}(mesh);

Add Variables

A Variable represents a field over the domain you want to solve for. It's the "u" in the -grad^2 u expression. Just like that "u" all Variables have a name ("u", "temperature", "displacement", etc.). To build our equations we're going to apply operators (called Kernels) to the Variables. But first, we need to add the Variables to the System.

In our case, we just have one variable named "u":

u = addVariable!(diffusion_system, "u");

That line of code adds a variable named u to the System and returns a handle to it. We can then use that handle to apply Kernels and BoundaryConditions to that Variable. Let's do that now...

Add Kernels

Each term (operator) in your PDE will be represented by one or more Kernels. The \(-\nabla \cdot \nabla\) operator (in weak form) is what is referred to as the Diffusion Kernel in MOOSE. It's already built-in (see src/kernels/Diffusion.jl so the only thing we need to do is apply that operator to our new variable (u):

addKernel!(diffusion_system, Diffusion(u));

The Diffusion(u) part of that statement creates a Diffusion Kernel that is acting on our u variable. It's then added to our diffusion_system.

If we had more terms in our PDE we would continue to call addKernel!(), creating each term and applying it to the appropriate Variable.

This brings up a good point about MOOSE. All of the objects are "reusable". The Diffusion Kernel represents the "idea" of the \(-\nabla\cdot\nabla\) operator. That Diffusion Kernel can be applied to as many variables as you want. So, if you are solving 16 equations and a \(-\nabla\cdot\nabla\) shows up in each one... then you can apply the same Diffusion operator to each variable. This gives us a large amount of code reuse and flexibility.

BoundaryConditions

Now that we've taken care of our PDE operators, we need to handle the boundary conditions (BCs). We said we wanted \(u=0\) on the left of the domain and \(u=1\) on the right. A \(u=something\) BC (aka "essential" BC, aka "BC of the first kind", etc.) is a type of BoundaryCondition we refer to as a DirichletBC. Just as with Kernels we can reuse the same object, applying it on different boundaries with different values.

Speaking of "boundaries"... our built-in mesh generator automatically added some "sidesets" and "nodesets" in our Mesh. These are sets of boundary geometry that allow us to specify where BoundaryConditions are applied. DirichletBC objects operate on "nodesets".

For the built-in mesh generator the sidesets/nodesets are as follows:

• 1: Bottom
• 2: Right
• 3: Top
• 4: Left

By applying BoundaryCondition objects to those "boundary IDs" we can select the part of the domain the BC will be applied on.

In our case we need two DirichletBCs... one on the left and one on the right with the proper values:

addBC!(diffusion_system, DirichletBC(u, [4], 0.0));
addBC!(diffusion_system, DirichletBC(u, [2], 1.0));

As you can see, a BoundaryCondition (like a Kernel) first takes the Variable it's going to operate on. Next, comes an array of the boundary IDs it will be applied on and finally, in the case of DirichletBC, the last argument specifies the value to enforce.

Initialization

Our set of equations is now complete. We've created geometry, added operators and set boundary conditions. Before we can continue we need to initialize!() the System:

initialize!(diffusion_system);

This step can do a lot of things... but the main thing it does is distribute all of the Degrees of Freedom (DoFs) corresponding to our Variables across our Mesh. The DoFs are the actually finite-element coefficients we'll be solving for in the next step...

Solve

Now that the problem is setup we need to actually solve the system of equations. To do that we're going to create a Solver and solve!() it.

For now, we're just going to use a simple, direct, built-in linear solver: JuliaDenseImplicitSolver:

solver = JuliaDenseImplicitSolver(diffusion_system);
solve!(solver);

As you can see, we needed to tell it which System to solve... and then call solve!() on the new Solver to actually do the solve.

Output

Once this is complete the solution will be held within the solver object. To output it to a file so we can view it with Paraview we can do:

out = VTKOutput();
output(out, solver, "simple_diffusion_out");

"VTK" is a visualization file format that many third-party visualization tools (such as Paraview) can read.

Final File

After all of these steps your file should look like:

using MOOSE

# Create the Mesh
mesh = buildSquare(0, 1, 0, 1, 10, 10)

# Create the System to hold the equations
diffusion_system = System{Float64}(mesh)

# Add a variable to solve for
u = addVariable!(diffusion_system, "u")

# Apply the Laplacian operator to the variable
addKernel!(diffusion_system, Diffusion(u))

# u = 0 on the Left
addBC!(diffusion_system, DirichletBC(u, [4], 0.0))

# u = 1 on the Right
addBC!(diffusion_system, DirichletBC(u, [2], 1.0))

# Initialize the system of equations
initialize!(diffusion_system)

# Create a solver and solve
solver = JuliaDenseImplicitSolver(diffusion_system)
solve!(solver)

# Output
out = VTKOutput()
output(out, solver, "simple_diffusion_out")

Running It

Save the file as diffusion.jl and run it like so:

julia diffusion.jl

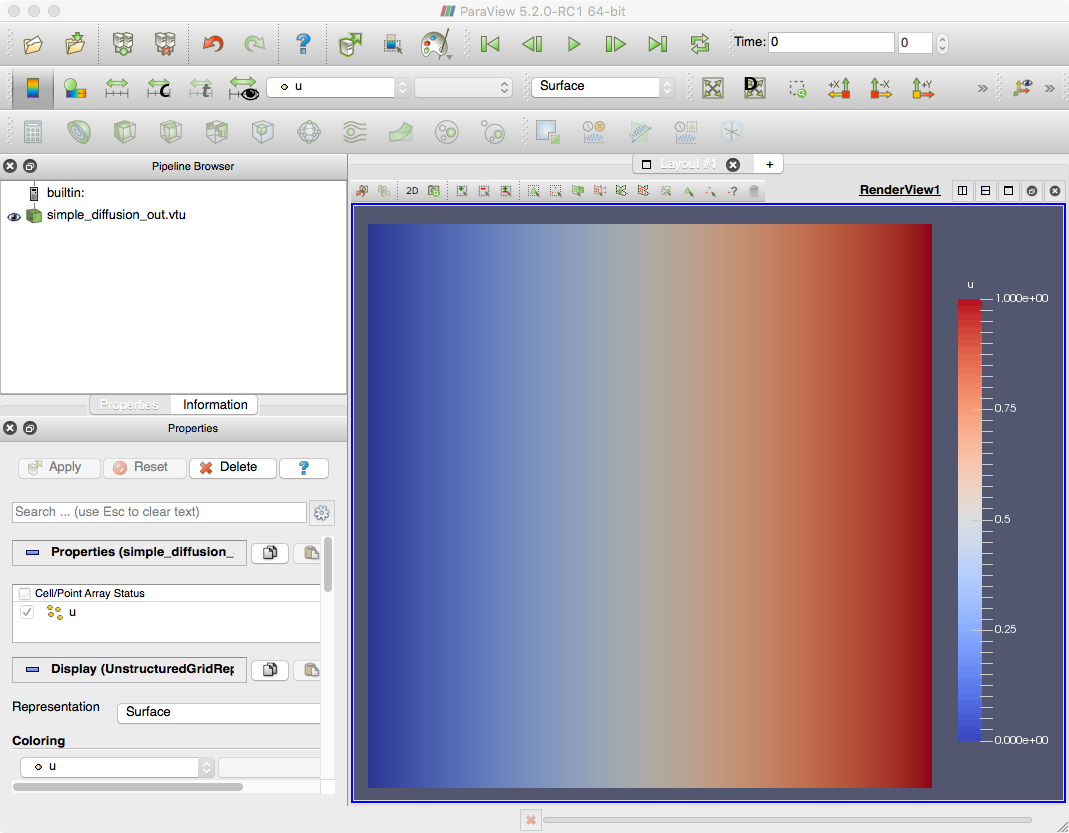

That last step should have produced a simple_diffusion_out.vtu file in your directory. You can then use Paraview to open the file and view the result:
